QLS-H1 Hydrogen Generator Pem/SPE Technology Hydrogen Production

Place of Origin : Shandong, China

Brand Name : QL

Packaging Details : Wooden box

Supply Ability : 30 Set/Sets per Month

Price : $70,000.00/sets 1-4 sets

Production Rate : H2 production rate :0-17L/min

Weight : 470 KG

Dimension(L*W*H) : 1600*1100*1800mm

Warranty of core components : 1 Year

Model : QLS-H1

Hydrogen Flow rate : 17L/min

H2 Purity : 99.999%

H2 output pressure : 0-3MPa

Technology : PEM/SPE

Application : Industry area, Experiment

Electrolyser quantity : 1 piece

Function : PLC control

Warranty : 12 month, 1 Year

Service life : 8-10 Years Under Correct Control

Applicable Industries : Construction works , Energy & Mining

Showroom Location : None

Condition : New

Use : HYDROGEN

Key Selling Points : PEM electrolysis cell

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Voltage : 220V/380V

Marketing Type : New Product 2021

Core Components : PLC, Electrolysis cell

Port : Qingdao

Contact Now

QLS-H1 PEM/SPE Technology Hydrogen Production Machine for Hydrogen Generation System

Product Description

QLS-H1 Hydrogen Generator Pem/SPE Technology Hydrogen Production

QLS-H1 PEM pure water electrolyted hydrogen production machine

The QLS series hydrogen generator is a fully automatic water electrolysis system based on proton exchange membrane (PEM). According to different modes, the maximum output of QLS-H1 generator design is 1.0 cubic meter per hour of hydrogen with a purity of 99.999%.
The maximum pressure of hydrogen transmission (the maximum hydrogen output pressure) is 1.5 MPa(or 30 bar customer-order). When in the power supply and eionized water supply, the machine can continue to run.

Specification

Model	QLS-H1
Hydrogen Production rate	0-1Nm3/hour
Hydrogen Purity	99.999%
Hydrogen Output pressure	0-15Bar or 0-30 Bar
Electrolyte power	5KW
Communication	Modbus TCP/IP Communication protocol
Standard features	Fully automatic, button start/shutdown, emergency stop, real-time hydrogen detection, automatic fault detection and system decompression.
Remote alarm	Host computer monitoring (optional)
Remote shutdown	Can be operated by host computer (optional)
Voltage	220V/380V
Weight	800KG
Dimension(LWH)	160011001800mm
Warranty	1 Year

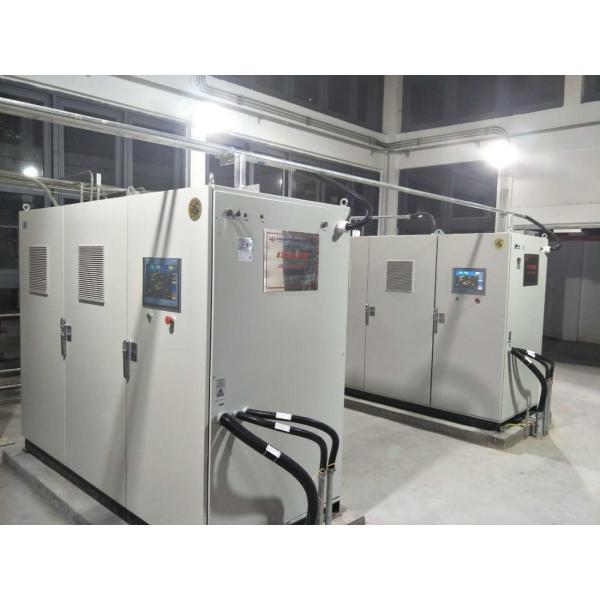

Our products in customer site
